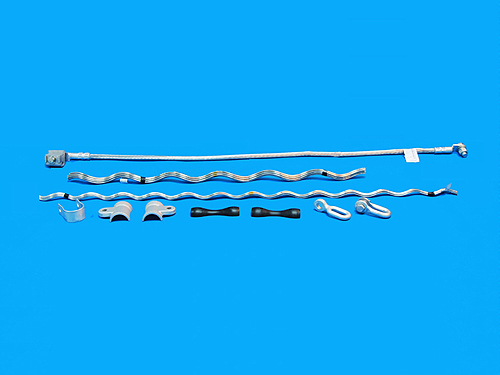

Single Suspension Clamp Set For OPGW

Product Description

Single Suspension Set(Table 8.2)

Double Suspension Set(Table 8.3)

Instructions –Aluminum alloy rod

Table 8.1 Yolk plate for double suspension set of OPGW

Cable Dia. range(mm)	Model	L(mm)	(KN)Failing Load
7.4-14.1	L-100/450	400	100
14.2-16.0	L-100/500	450	120
16.1-20.0	L-100/600	560	160

Table 8.2
Specification of suspension set, (the grip strength of the clamp is bigger than 20% of the rated tensile strength of cable)

Model	Cable Dia. range (mm)	Length of Structural Reinforcing Rods (mm)	Length of Outer Rods (mm)	Weight (kg)	ColorCode	Collocate
Model	Cable Dia. range (mm)	Length of Structural Reinforcing Rods (mm)	Length of Outer Rods (mm)	Weight (kg)	ColorCode	AGS Clamp	Link Fittings
OXY 0800	7.4-8.0	1650	1100	1.27	Blue	Referrence Table 16.3	Referrence Appendix 1
OXY 0880	8.1-8.8	1650	1100	1.37	Green
OXY 0960	8.9-9.6	1690	1140	1.49	Yellow
OXY 1010	9.7-10.1	1690	1140	1.49	Black
OXY 1060	10.2-10.6	1690	1140	1.56	White
OXY 1110	10.7-11.1	1720	1140	1.57	Red
OXY 1160	11.2-11.6	1760	1180	1.72	Blue
OXY 1170	11.7-11.7	1840	1240	1.88	Green
OXY 1200	11.8-12.0	1840	1240	1.88	Yellow
OXY 1270	12.1-12.7	1860	1240	1.89	Black
OXY 1290	12.8-12.9	1960	1240	2.12	White
OXY 1360	13.0-13.6	1960	1320	2.20	Red
OXY 1410	13.7-14.1	2000	1320	2.22	Blue
OXY 1430	14.2-14.3	2000	1320	2.22	Green
OXY 1450	14.4-14.5	2120	1440	2.61	Yellow
OXY 1510	14.6-15.1	2120	1440	2.62	Blue
OXY 1580	15.2-15.8	2180	1440	2.65	White
OXY 1600	15.9-16.0	2400	1620	3.05	Red
OXY 1690	16.1-16.9	2400	1620	3.05	Blue
OXY 1730	17.0-17.3	2400	1620	3.2	Green
OXY 1800	17.4-18.0	2400	1620	3.3	Yellow
OXY 1840	18.1-18.4	2400	1620	3.3	Black
OXY 1880	18.5-18.8	2400	1620	3.55	White
OXY 1890	18.9-18.9	2400	1620	3.55	Red
OXY 1990	19.0-19.9	2400	1620	3.55	Blue

Table 8.3
Specification of double suspension set (The grip strength of the clamp is bigger than 24% of the rated tensile strength of cable )

Instruction: 1, the Max. Unilateral angle of the single suspension will be 15-18,for double suspension clamp will be 30-36, For the linking fitting, please reference Appendix.
