Product Description
Use:
Cap type plastic joint box : used for splicing of ADSS and OPGW fiber, the maximal capacity is 96cores .

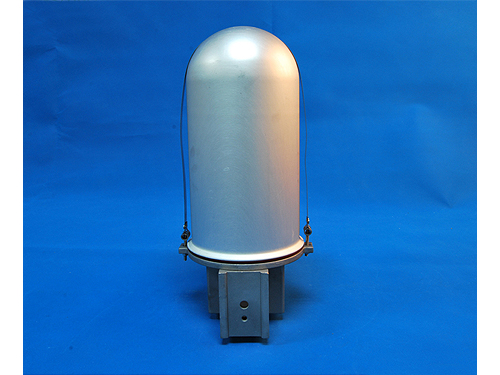

Cap-type Metal joint box : bears the excellence of high mechanical strength ,good sirproof performance and excellent corrosion resistance .Having been seated with sealing ring and silicone, it could be opened ,expased,fixed,and connected repeatedly. The maximal capacity is 144 corn. When the mocrobend fiber loss is not larger than 0.01Db, and the bending radius for fiber is not less than 45mm, it need the special way for immobility,to protect the fiber.
12.1 Table 12.1 ,Specification of cap-type plastic joint box for pole .
|
Name
|
Model
|
Core No.
|
weight (kg)
|
Remark
|
|
Input-1,Output-1 for ADSSPlastic Joint Box for Pole
|
AJS 02 048-H*
|
8-48
|
1.8
|
|
|
AJS 02 096-H*
|
48-96
|
1.8
|
|
Input-2,Output-2 for ADSSPlastic Joint Box for Pole
|
AJS 04 048-H*
|
8-48
|
1.8
|
Also Suitable for Input-2 ,Output-1
|
|
AJS 04 096-H*
|
48-96
|
1.8
|
|
Input-1,Output-1 for ADSSPlastic Joint Box for Tower
|
AJS 02 048-T
|
12-48
|
1.8
|
|
|
AJS 02 096-T
|
48-96
|
1.8
|
|
|
Input-2,Output-2 for ADSSPlastic Joint Box for Tower
|
AJS 04 048-T
|
12-48
|
1.8
|
Also Suitable for Input-2 ,Output-1
|
|
AJS 04 096-T
|
48-96
|
1.8
|
Table 12.2 Specification of cap-type plastic joint box for tower
|
Name
|
Model
|
Weight(kg)
|
Material
|
Install Location
|
|

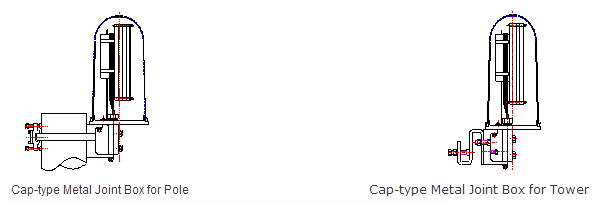

Cap-type Metal Joint Box for Pole
|
PJJ 02 048-H*
|
6.7
|
Aluminum alloy
|
For pole
|
|
PJJ 02 096- H*
|
6.7
|
|
Cap-type Metal Joint Box for Pole
|
PJJ 04 048- H*
|
6.7
|
|
PJJ 04 096- H*
|
6.7
|
|
Cap-type Metal Joint Box for Tower
|
PJJ 02 048-T
|
6.7
|
Aluminum alloy
|
For tower
|
|
PJJ 02 096-T
|
6.7
|
|
Cap-type Metal Joint Box for Tower
|
PJJ 04 048-T
|
6.7
|
|
PJJ 04 096-T
|
6.7
|
