| Name |
Model |
Suitable Range |
Weight(kg) |
Material |
Failing Load(KN) |

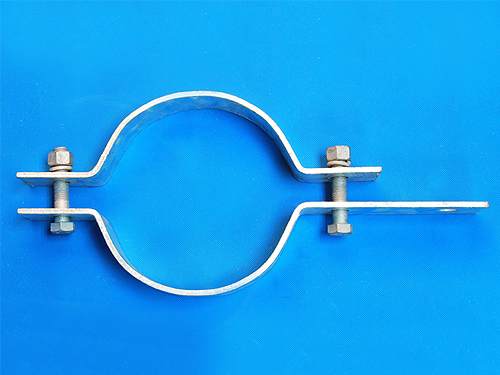

| Hoop |
TGX 125 070 |
Installation position diameter: 101~125mm |
2.3 |
Hot dip galvanized |
70 |
| TGX 150 070 |
Installation position diameter: 126~150mm |
2.5 |
Hot dip galvanized |
70 |
| TGX 175 070 |
Installation position diameter: 151~175mm |
2.7 |
Hot dip galvanized |
70 |
| TGX 200 070 |
Installation position diameter: 176~200mm |
2.9 |
Hot dip galvanized |
70 |
| TGX 225 070 |
Installation position diameter: 201~225mm |
3.2 |
Hot dip galvanized |
70 |
| TGX 250 070 |
Installation position diameter: 226~250mm |
3.4 |
Hot dip galvanized |
70 |
| TGX 275 070 |
Installation position diameter: 251~275mm |
4.0 |
Hot dip galvanized |
70 |
| TGX 300 070 |
Installation position diameter: 276~300mm |
4.2 |
Hot dip galvanized |
70 |
| TGX 325 070 |
Installation position diameter: 301~325mm |
4.4 |
Hot dip galvanized |
70 |
| TGX 350 070 |
Installation position diameter: 326~350mm |
4.6 |
Hot dip galvanized |
70 |
| TGX 375 070 |
Installation position diameter: 351~375mm |
4.9 |
Hot dip galvanized |
70 |
| TGX 400 070 |
Installation position diameter: 376~400mm |
5.1 |
Hot dip galvanized |
70 |
| TGX 425 070 |
Installation position diameter: 401~425mm |
5.3 |
Hot dip galvanized |
70 |
| TGX 450 070 |
Installation position diameter: 426~450mm |
5.5 |
Hot dip galvanized |
70 |
| TGX 475 070 |
Installation position diameter: 451~475mm |
5.7 |
Hot dip galvanized |
70 |
| TGX 500 070 |
Installation position diameter: 476~500mm |
6.0 |
Hot dip galvanized |
70 |
| TGX 525 070 |
Installation position diameter: 501~525mm |
6.2 |
Hot dip galvanized |
70 |
| TGX 550 070 |
Installation position diameter: 526~550mm |
6.4 |
Hot dip galvanized |
70 |
| TGX 575 070 |
Installation position diameter: 551~575mm |
6.6 |
Hot dip galvanized |
70 |
| TGX 600 070 |
Installation position diameter: 576~600mm |
6.8 |
Hot dip galvanized |
70 |
| TGX 625 070 |
Installation position diameter: 601~625mm |
7.1 |
Hot dip galvanized |
70 |
| TGX 650 070 |
Installation position diameter: 626~650mm |
7.3 |
Hot dip galvanized |
70 |
| TGX 675 070 |
Installation position diameter: 651~675mm |
7.5 |
Hot dip galvanized |
70 |
| TGX 700 070 |
Installation position diameter: 676~700mm |
7.7 |
Hot dip galvanized |
70 |
| TGX 800 070 |
Installation position diameter: 701~800mm |
8.7 |
Hot dip galvanized |
70 |
| TGX 900 070 |
Installation position diameter: 801~900mm |
9.7 |
Hot dip galvanized |
70 |
| TGX 1000 070 |
Installation position diameter:901~1000mm |
9.9 |
Hot dip galvanized |
70 |
