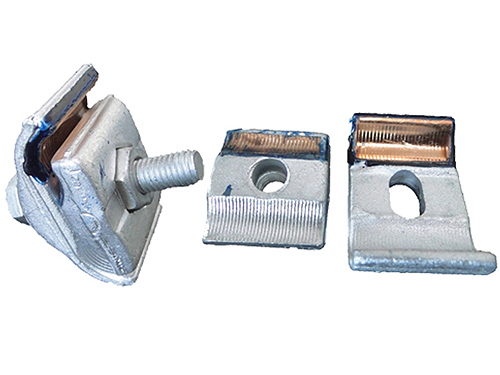

CAPG Bimetallic PG Clamp
Product Description

For connection of AL conductors according to DIN48201 & ACSR conductors according to DIN48204 with copper tap-off conductors according to 48201.

Material:
Body: High strength, corrosion-resistant, aluminum alloy (AL MgSi1) with hot forged bimetallic sheet, for copper tap-off.
Bolts: Steel 8.8, DIN933, hot-dip galvanized.
Nuts: Steel 8, DIN6796 corrosion-protected.
Conical washers: Steel, DIN6796 corrosion-protected.
Pressure pad: Aluminum alloy with spring washers DIN 127 hot-dip galvanize.



APG type Aluminum Parallel Groove Clamp
Type Conductor Cross-section(mm2) L B Bolts No
APG 6-35/1 Φ 2.7-7.5 26 30 1 ×M8
APG 16-70/1 Φ 4.8-11.7 26 36 1 ×M8
APG 16-70/2 Φ 4.8-11.7 40 36 2 ×M8
APG 10-95/2 Φ 3.8-12.5 42 40 2 ×M8
APG 16-120/2 Φ 4.8-14 45 43 2 ×M8
APG 16-150/2 Φ 4.8-15.7 50 45 2 ×M8
APG 25-240/2 Φ 6-20.3 64 58 2 ×M10
APG 35-300/3 Φ 7-23 105 66 3 ×M10

CAPG type copper-aluminum Parallel Groove Clamp

Type. Conductor Cross-section(mm2) L B Bolts No
CAPG 6-50/16-70A Φ 2.7-9 26 36.5 1 × M8
CAPG 10-95/16-150A Φ 3.8-12.5 26 45 1 × M8
CAPG 6-50/16-150B Φ 2.7-9 40 36.5 2 × M8
CAPG 10-95/16-150B Φ 3.8-12.5 50 45 2 × M8
CAPG 16-120/25-150B Φ 4.8-14 50 45 2 × M8
CAPG 16-185/16-120B Φ 4.8-17.5 66 45 2 × M8
CAPG 16-185/25-240B Φ 4.8-17.5 64 59 2 × M8
CAPG 35-240/35-300B Φ 7-20.3 64 65 2 × M10
CAPG 35-185/35-185C Φ 7-17.5 95 55 3 × M10
CAPG 35-240/35-300C Φ 7-20.3 105 65 3 × M10
